Single ear clamp is also known as the single ear stepless clamp, and the term "stepless" means that there are no bulges and gaps in the inner ring of the clamp. The stepless design realizes uniform force compression on the surface of the pipe fittings and 360° sealing guarantee.
The standard series of single-ear stepless clamps are suitable for general hose connection to rigid tubing.
The reinforced series of single-ear stepless clamps are suitable for difficult occasions to seal, such as pipe fittings with less elasticity such as aluminum-plastic pipes
The single-ear stepless clamps of the PEX series are specially adapted for the connection of PEX tubes.
Stainless steel 304 and stainless steel 304 are conventionally used, which have greater stamping ductility. Some low-end products can be processed using cold-rolled plates.
360° stepless design – the inner ring of the clamp does not have any protrusions or gaps. Narrow band design provides more concentrated sealing pressure. The specially treated clamp edge reduces the possibility of damage to the clamped part. Light weight. The clamping effect is obvious.

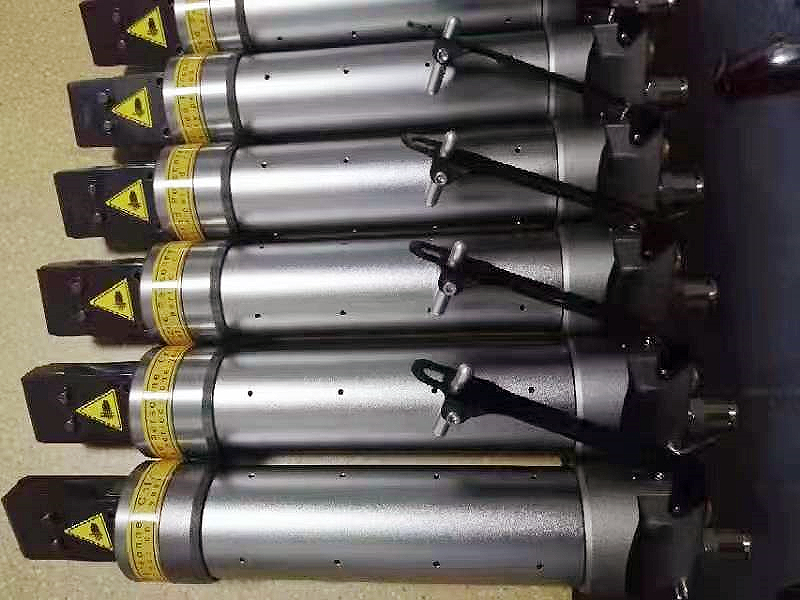

Pneumatic calipers are recommended. Pneumatic calipers solve the consistency and effectiveness of the process and method of installing clamps for customers, and comprehensively improve the quality and value of customer application systems by quantitatively distributing clamping forces and ensuring complete consistency of installation effects, especially for mass production needs.
The connection of soft and hard pipes on the pipeline conveying equipment of automobiles, trains, ships, water supply systems, beer machines, coffee machines, beverage machines, medical equipment, petrochemical industry, etc., is not removable in the use environment.
