6mm - 76mm and customized
SS201/304/316 or Galvanized steel
12 / 15 / 20mm
0.6mm, 0.8mm, 1.0mm
| Quantity: | |
|---|---|
Product Description

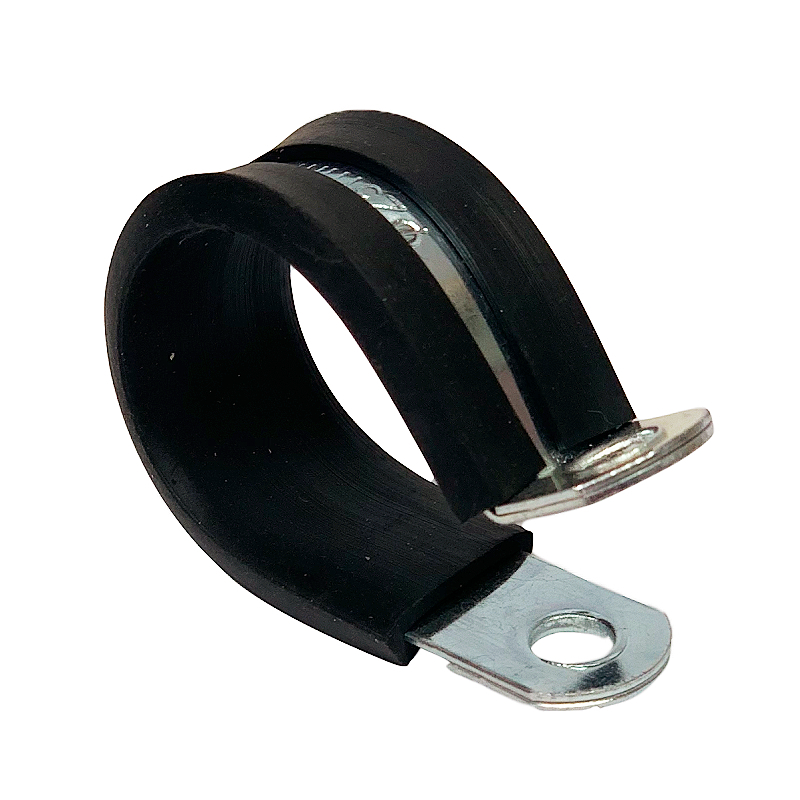

The P Type Rubber Hose Clamp, also known as a P-Clip, is a versatile fastening solution designed to protect and secure wires or hoses with efficiency and reliability. These clamps feature a rubber layer on the outer fixing part, serving as a protective shield for the surface of the wire or hose they secure. The rubber layer exhibits exceptional flexibility, a shiny surface, and resistance to oil, acid, and chemicals, ensuring long-lasting performance in various environments.
The Fixing Clamp With Rubber, made of high-strength materials like Type 304 stainless steel or carbon steel, offers robust impact resistance and ease of wiring. It provides reliable and secure fastening, making it a valuable component in numerous applications. Additionally, these clamps are designed for easy interchangeability, adding to their versatility.
The metal surface of these P-Clips undergoes an acid passivation process, which helps resist corrosion and aging, ensuring longevity and dependable performance. The combination of a zinc-plated mild steel band lined with EPDM rubber creates a sturdy and protective housing for wires or hoses.
Our custom P Type Rubber Hose Clamp solutions include options like 304 stainless steel P-Clips and carbon steel P Type Rubber Hose Clamps, offering resistance to scaling and corrosion. The 6mm P Type Rubber Hose Clamp exemplifies our commitment to providing versatile and reliable fastening solutions for your specific needs.
Whether you need P type rubber hose clamps for wiring bundles or hose applications, these clamps are a dependable choice. Their slotted mounting hole aids alignment during installation, ensuring a secure and precise fit. Trust in their EPDM liner to safeguard hoses and wires from abrasion, enhancing their longevity and performance.
* Type 304 stainless steel band for resistance to scaling and corrosion
* Slotted mounting hole aids alignment for mounting
* EPDM liner wraps band to protect hose or wire from abrasion
* For use with hoses and wiring bundles
Data sheet
Material | SS201/304/316 or Galvanized steel |
Bandwidth | 12 / 15 / 20mm |
Thickness | 0.6mm, 0.8mm, 1.0mm |
Size | 6mm - 76mm and customized |
Standard | DIN3016 |
Material
W1 - All parts carbon steel with zinc plated, rubber EPDM
W4 - All parts stainless steel 201, 304, rubber EPDM
Dimension
CLAMP RANGE Max(mm) | BANDWIDTH | THICKNESS |
4mm | 12/15/20mm | 0.6/0.8/1.0mm |
6mm | 12/15/20mm | 0.6/0.8/1.0mm |
8mm | 12/15/20mm | 0.6/0.8/1.0mm |
10mm | 12/15/20mm | 0.6/0.8/1.0mm |
13mm | 12/15/20mm | 0.6/0.8/1.0mm |
16mm | 12/15/20mm | 0.6/0.8/1.0mm |
19mm | 12/15/20mm | 0.6/0.8/1.0mm |
20mm | 12/15/20mm | 0.6/0.8/1.0mm |
25mm | 12/15/20mm | 0.6/0.8/1.0mm |
29mm | 12/15/20mm | 0.6/0.8/1.0mm |
30mm | 12/15/20mm | 0.6/0.8/1.0mm |
35mm | 12/15/20mm | 0.6/0.8/1.0mm |
40mm | 12/15/20mm | 0.6/0.8/1.0mm |
45mm | 12/15/20mm | 0.6/0.8/1.0mm |
50mm | 12/15/20mm | 0.6/0.8/1.0mm |
55mm | 12/15/20mm | 0.6/0.8/1.0mm |
60mm | 12/15/20mm | 0.6/0.8/1.0mm |
65mm | 12/15/20mm | 0.6/0.8/1.0mm |
70mm | 12/15/20mm | 0.6/0.8/1.0mm |
76mm | 12/15/20mm | 0.6/0.8/1.0mm |
Product Characteristics
1. Rubber cushion absorbs vibration and protect the hold objects.
2. The rubber profile is in EPDM material, insulated,used to fixing cables.
3. Bands have reinforced bolt holes for extra strength.
4. The wrapping rubber provides excellent protection to the fixed wire and pipe, with good flexibility, smooth surface, chemical corrosion resistance, high strength, good impact resistance, waterproof, oil-proof and dustproof.
Application
Rubber hose clamp mainly use in securing pipes, cables and cable harnesses, cable ducts, hose and other flow lines. Used in almost all sectors of industry, e.g.
1. In the automotive industry, mechanical and application engineering.
2. hydraulics and pneumatics.
3. measurement and control engineering and the chemical.
4. Ship building, electrical and food processing industries.
You can see some usage scenario in below picture.
