7326909000
OEM/ ODM also available
Galvanized iron / Stainless Steel 201, Stainless Steel 304
1.5 / 1.8 / 2.0 / 2.3 / 2.5 mm
| Quantity: | |
|---|---|
Product Description
Double wire clamps are essential components in applications where low tightening torque is required. These clamps offer a flexible and reliable solution for achieving a 360° leak-free seal. Made entirely of carbon steel with a CR3+ coating that complies with RoHS and REACH standards, these wire hose clamps are not only durable but also environmentally friendly.
One notable feature of these clamps is their versatility in screw types, with options available in both hexagon head and flat head screws. This adaptability ensures that you can choose the ideal configuration for your specific application, making installation quick and straightforward.
When it comes to securing hoses to equipment fittings, double wire clamps excel. Using a simple screwdriver or a hex head wrench, you can easily tighten the screw to achieve a secure and robust connection. The spring steel double wire design ensures consistent pressure, holding the hose firmly in place. The Double-Loop design further enhances the grip on the hose, offering additional security.
Both galvanized steel wire clamps and stainless steel wire clamps are available, allowing you to select the material that best suits your requirements. These options provide excellent resistance to corrosion and ensure a long-lasting and dependable connection.
Each size ring hose clamp is thoughtfully designed to provide a secure and flexible option for connecting pipes to dust hoods, blast gates, and other dust collection fittings. Whether you choose a Galvanized iron Double wire hose clamp or a Stainless Steel Double wire hose clamp, you can trust in their reliability and performance.
Data sheet
Material | Galvanized iron / Stainless Steel 201, Stainless Steel 304 |
Wire diameter | 1.5 / 1.8 / 2.0 / 2.3 / 2.5 mm |
Screws | hexagon head and flat head screw |
Size | OEM/ ODM also available |
Usage | Widely used for pipe union joint of fire fighting/ship/disesl engine/machine tool. |

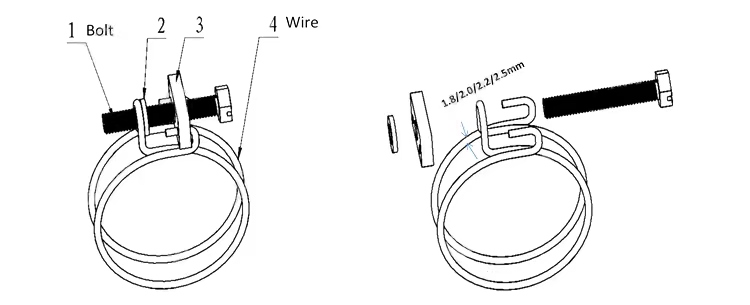

Material
W1 -All material Galvanized Carbon Steel, Zinc Plated Steel.
W4 - All parts stainless steel 201/304
Dimension
Dimension Range mm | W1 | W4 | ||
wire diameter | screw | wire dia | screw | |
11-14mm | 1.5 | M5×30 | 2 | M6×30 |
13-16mm | 1.5 | M5×30 | 2 | M6×30 |
15-18mm | 1.5 | M5×30 | 2 | M6×30 |
17-20mm | 1.8 | M5×30 | 2 | M6×30 |
19-22mm | 1.8 | M5×30 | 2 | M6×30 |
20-24mm | 1.8 | M5×30 | 2 | M6×30 |
22-26mm | 1.8 | M5×30 | 2 | M6×30 |
24-28mm | 1.8 | M5×30 | 2 | M6×35 |
26-30mm | 2.2 | M6×40 | 2 | M6×35 |
28-32mm | 2.2 | M6×40 | 2 | M6×40 |
31-35mm | 2.2 | M6×40 | 2 | M6×40 |
34-38mm | 2.2 | M6×40 | 2 | M6×40 |
35-40mm | 2.2 | M6×40 | 2 | M6×40 |
37-42mm | 2.2 | M6×40 | 2 | M6×40 |
40-45mm | 2.2 | M6×40 | 2 | M6×40 |
43-48mm | 2.2 | M6×50 | 2 | M6×40 |
45-50mm | 2.2 | M6×50 | 2.3 | M6×40 |
47-52mm | 2.2 | M6×50 | 2.3 | M6×50 |
50-55mm | 2.2 | M6×50 | 2.3 | M6×50 |
53-58mm | 2.2 | M6×50 | 2.3 | M6×50 |
55-60mm | 2.2 | M6×60 | 2.3 | M6×50 |
54-62mm | 2.2 | M6×60 | 2.3 | M6×50 |
60-65mm | 2.5 | M6×60 | 2.3 | M6×50 |
63-68mm | 2.5 | M6×60 | 2.3 | M6×50 |
65-70mm | 2.5 | M6×70 | 2.3 | M6×50 |
70-75mm | 2.5 | M6×70 | 2.3 | M6×50 |
75-80mm | 2.5 | M6×70 | 2.3 | M6×50 |
80-85mm | 2.5 | M6×70 | 2.3 | M6×50 |
84-90mm | 2.5 | M8×70 | 2.3 | M6×50 |
89-95mm | 2.5 | M8×70 | 2.3 | M6×50 |
94-100mm | 2.5 | M8×80 | 2.3 | M6×50 |
98-105mm | 2.5 | M8×80 | 2.3 | M6×60 |
103-110mm | 2.5 | M8×80 | 2.3 | M6×60 |
108-115mm | 2.5 | M8×80 | 2.3 | M6×60 |
113-120mm | 2.5 | M8×80 | 2.3 | M6×60 |
Product Characteristics
1. The main Feature is easy to use and fasten powerful.
2. Simple release and tighten the screw to adjust the clamp diameter.
3. Lightweight, low profile, compact design allows ease of installation in restricted applications
4. Delivers a heavy duty, leak proof and corrosion resistant hose clamping tool constructed out of premium grade stainless steel built for durability.
Application
These carbon double wire clamps with zinc coating are perfect for rubber and PVC hoses, And work brilliantly with spiral wire dust collection systems, industrial vacuum cleaners, or even pool pump hoses.
It is widely used for pipe union joint of fire fighting/ship/disesl engine/machine tool.
You can see some usage scenario in below picture.
